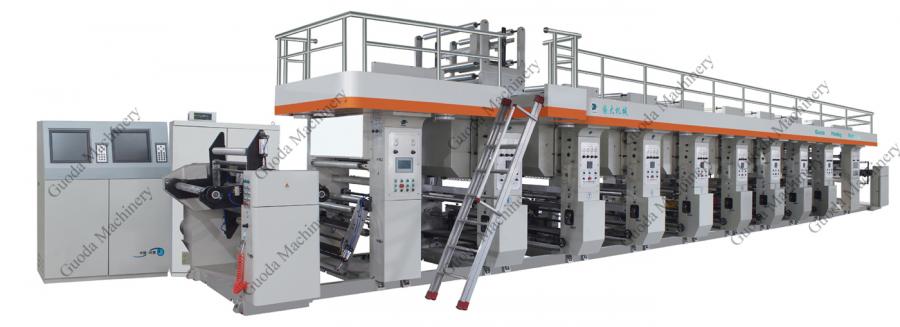

Rotogravure Printing Machine (GWASY-A)
Main Technical Parameter
| Technical Parameter | Value |
| Machine Width | 800MM / 1000MM / 1100MM / 1200MM |
| Mechanical Speed | 180M/MIN |
| Printing Speed | 160M/MIN |
| Diameter Of Printing Cylinder | φ120mm～φ320MM |
| Diameter Of Unwind/Rewind | Φ600MM / Φ800MM |
| Register Precision |
Vertical: ≤ ±0.12MM (Auto Register) Horizontal: ≤ ±0.12MM (Auto Register Optional) |
GWASY-A Series
- Machine Speed 180M/MIN
Suitable Printing Material
- BOPP/CPP/PET/PVC/PE/Nylon/Metalize Film/Paper/Cellophane/Paper.etc Roll Material
Main Specifications
- Seven-Motor Drive System
- Auto Register System (Only Vertical Direction Auto Register)
- Video Inspection System
- Unwind & Rewind Both Auto Splicing With Non-Stop Of The Machine
- Unwind & Rewind Air Shaft Loading / Unloading By Axis Type
- Cylinder Loading / Unloading Pneumatic Shaft-less Type
