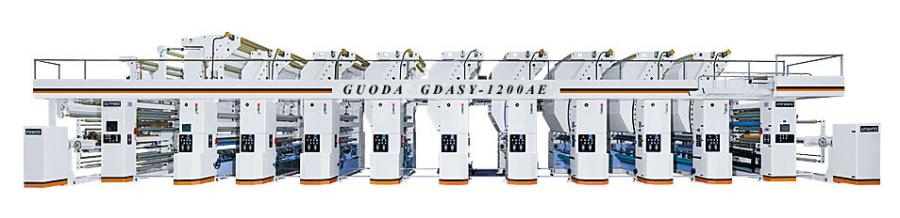

Rotogravure Printing Machine (GDASY-AE)
Main Technical Parameter
| Technical Parameter | Value |
| Machine Width | 1050MM / 1150MM / 1250MM / 1350MM |
| Printing Width | 1000MM / 1100MM / 1200MM / 1300MM |
| Mechanical Speed | 300M/MIN |
| Printing Speed | 260M/MIN |
| Diameter Of Printing Cylinder | φ120mm～φ320MM |
| Diameter Of Unwind/Rewind | Φ600MM / Φ800MM |
| Register Precision |
Vertical: ≤ ±0.12MM (Auto Register) Horizontal: ≤ ±0.12MM (Auto Register) |
GDASY-AE Series
- Machine Speed 300M/MIN
Suitable Printing Material
- BOPP/CPP/PET/PVC/PE/Nylon/Metalize Film/Paper/Cellophane/Paper.etc Roll Material
Main Specifications
- Electronic Shaft Drive System (Each Printing Units Driven By Separately Servo Motor)
- Vertical & Horizontal Direction Are Both Auto Register
- Video Inspection System
- Unwind & Rewind Both Auto Splicing With Non-Stop Of The Machine
- Unwind & Rewind Air Shaft Loading / Unloading Pneumatic Shaft-less Type
- Cylinder Loading / Unloading Pneumatic Shaft-less Type
- Ink Transfer By Pressure Rubber Roller
- Doctor Blade Assembly With Ink Blade Quick Replace System
